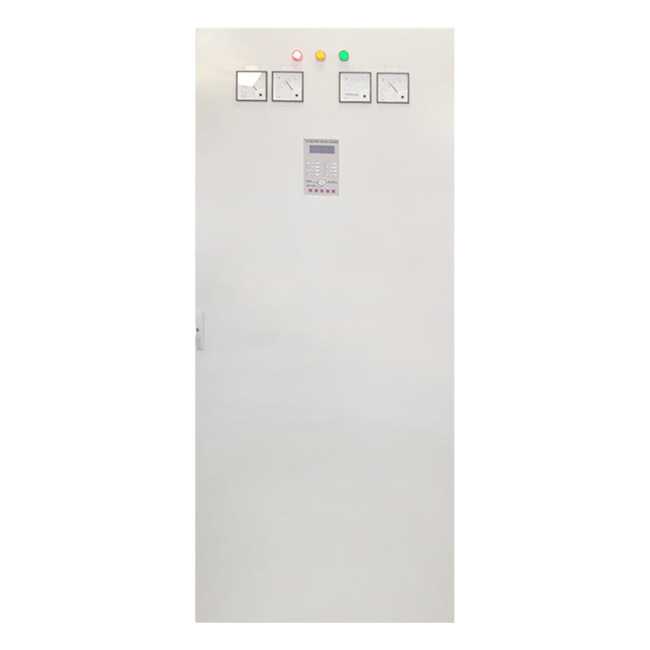

Industrial chargers are widely used in various industries. Considering the wide range of applications and different conditions of use, various cases can be presented.
Specifications of chargers
– 1 voltage available 12V, 24V, 48V, 60V, 110 VDC, …. 400VDC
– 2 current range from 10A to 2000A
– 3 charger options: Float, Boost, Initialize
- The possibility of choosing sealed acid and NICD batteries
5- The possibility of planning and designing the load voltage with the tolerance and percentage of regulation desired by the customer
- The possibility of making double chargers as Load Sharing or Hot Standby with a digital panel
7- Compliant with standards: IEC60529, IEC60445, IEC60146, IEC60076, IEC60073, IEC60051, IEC60947-3 and also with standard: IPS-M-EL-176
8-Equipped with different outputs for load and battery

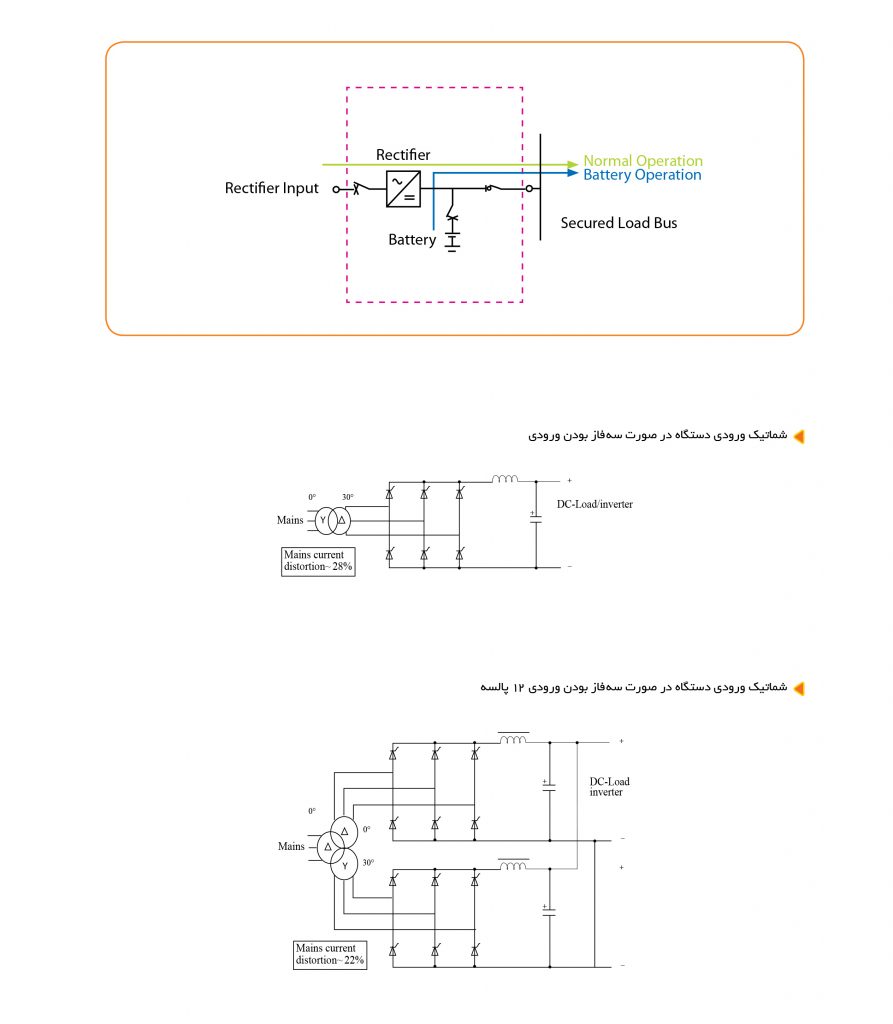

– 9 industrial and linear 6-pulse and 12-pulse chargers
– 10 possibilities of Half Bridge or Full Bridge
11- Ability to install digital display and microprocessor facilities with various programs required by the customer
– 12. The ability to send a dry signal (Dry Contact)
